Frame
Scale Carbon HMF, Adjustable head angle, Syncros Cable Integration System, Advanced Shock & Standing Damping System, BB92, UDH Interface, 12x148mm with 55mm Chainline
-

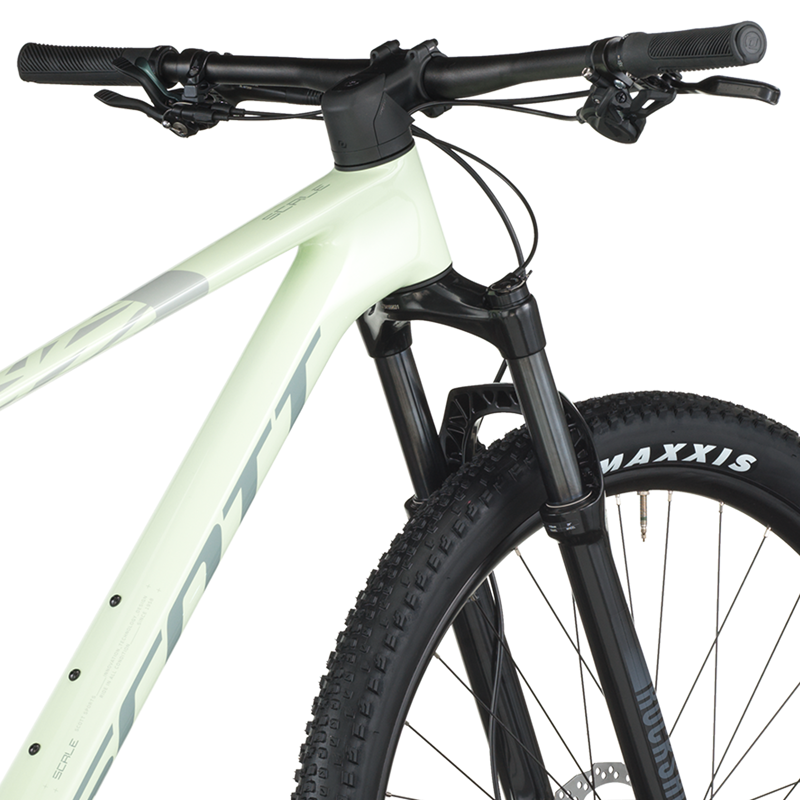

Fork
RockShox Judy Silver TK Solo Air, 15x110mm QR axle, 51mm offset, Tapered Steerer, Reb. Adj., Lockout, 110mm travel
-
Remote System
SCOTT RideLoc Technology, Suspension & Dropper Remote, 2 Suspension modes
-

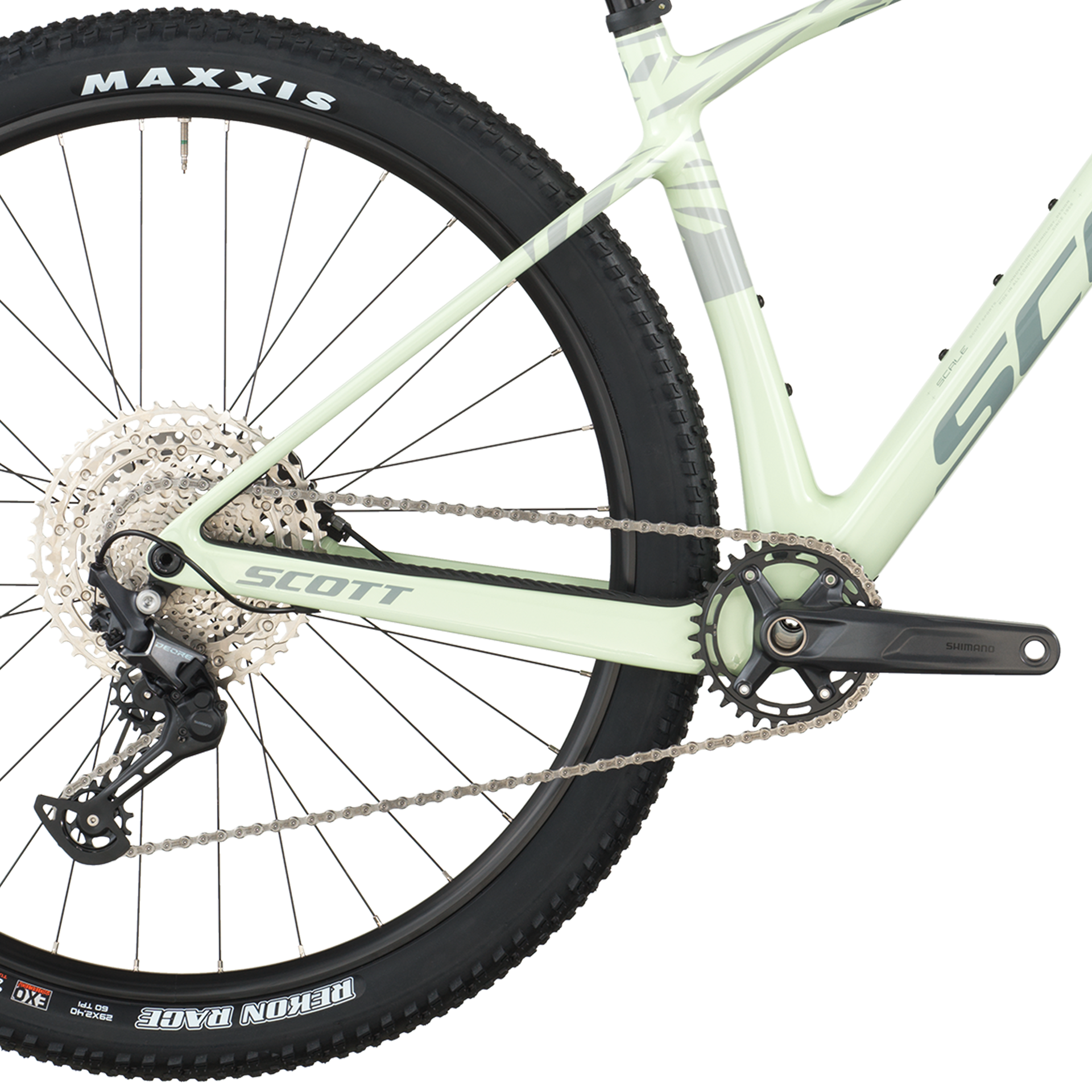

Rear Derailleur
Shimano Deore RD-M6100 SGS, Shadow Plus, 12 Speed
-
Shifters
Shimano Deore SL-M6100-R, Rapidfire Plus
-
Crankset
Shimano FC-MT512-1, 55mm CL, 32T
-
BB-Set
Shimano BB-MT500, shell 41x92mm
-
Chain
Shimano CN-M6100
-
Cassette
Shimano Deore CS-M6100-12, 10-51 T
-
Brakes
Shimano MT200 Disc Brake
-
Rotor
Shimano SM-RT10 CL, 180/F and 160/R
-
Handlebar
Syncros Alloy 6061, T shape Flat, 9°, 740mm, Syncros Performance XC lock-on grips
-
H'stem
Syncros DC 3.0, Syncros Cable Integration System, 0° rise, 6061 Alloy, 31.8mm, 1 1/8"
-

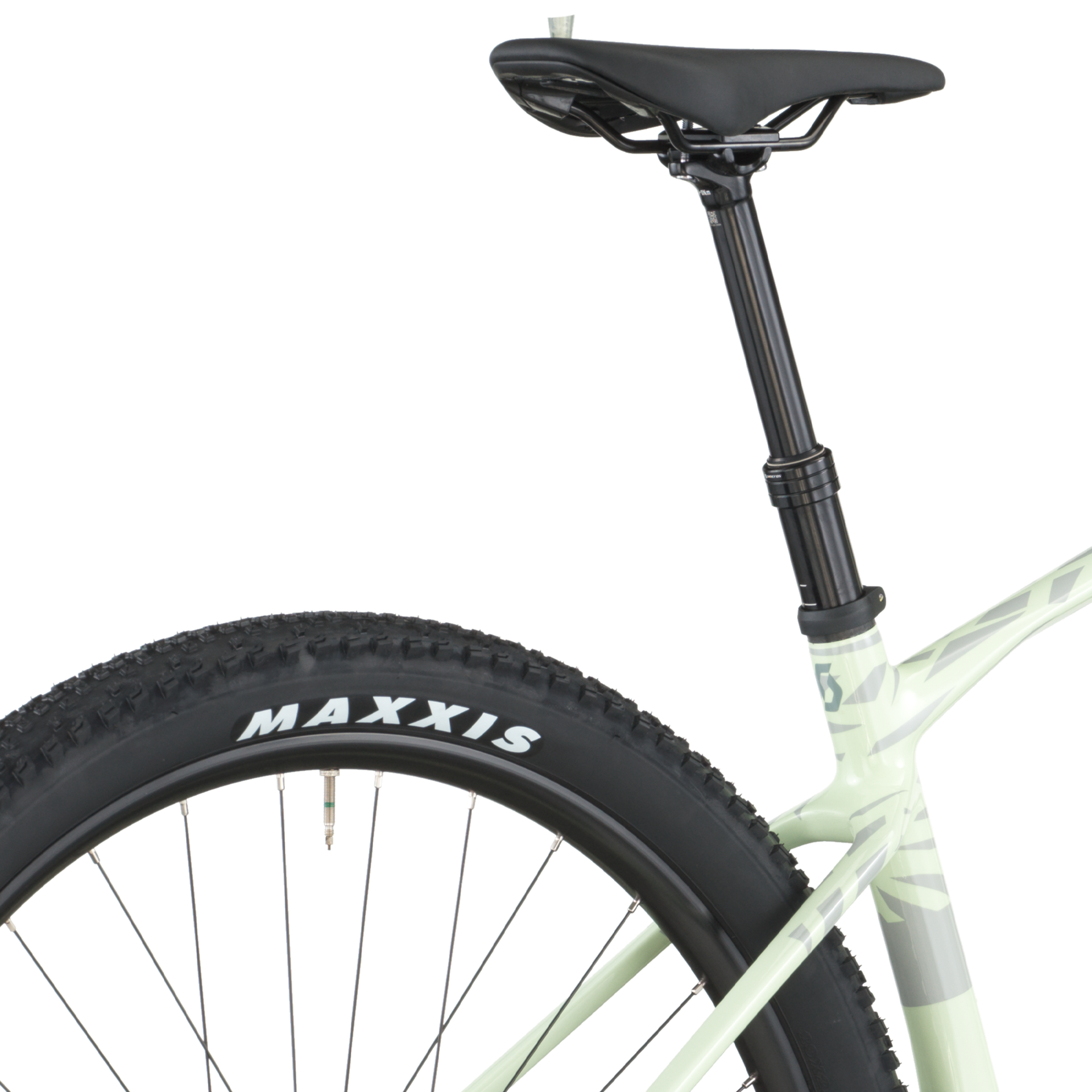

Seatpost
Syncros Duncan Dropper, 31.6mm, S size 100mm, M size 130mm, L &XL size 150mm
-
Seat
Syncros Belcarra Regular 2.5
-
Headset
Syncros - Acros Angle adjust & Cable Routing HS System, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
-
Hub (Front)
Formula CL-811, 15x110mm
-
Hub (Rear)
Formula CL-548M, 12x148mm, Micro Spline
-
Spokes
Stainless Black 15G, 1.8mm
-
Rims
Alex X-25/ 32H, 25mm, Tubeless ready
-
Front Tire
Maxxis Rekon Race, 29x2.4", EXO, Tubeless Ready
-
Rear Tire
Maxxis Rekon Race, 29x2.4", EXO, Tubeless Ready
-
Approx weight in KG
12.9 (Tubless setup)
-
Approx weight in LBS
28.44 (Tubless setup)
-
Max. System Weight
130kg
