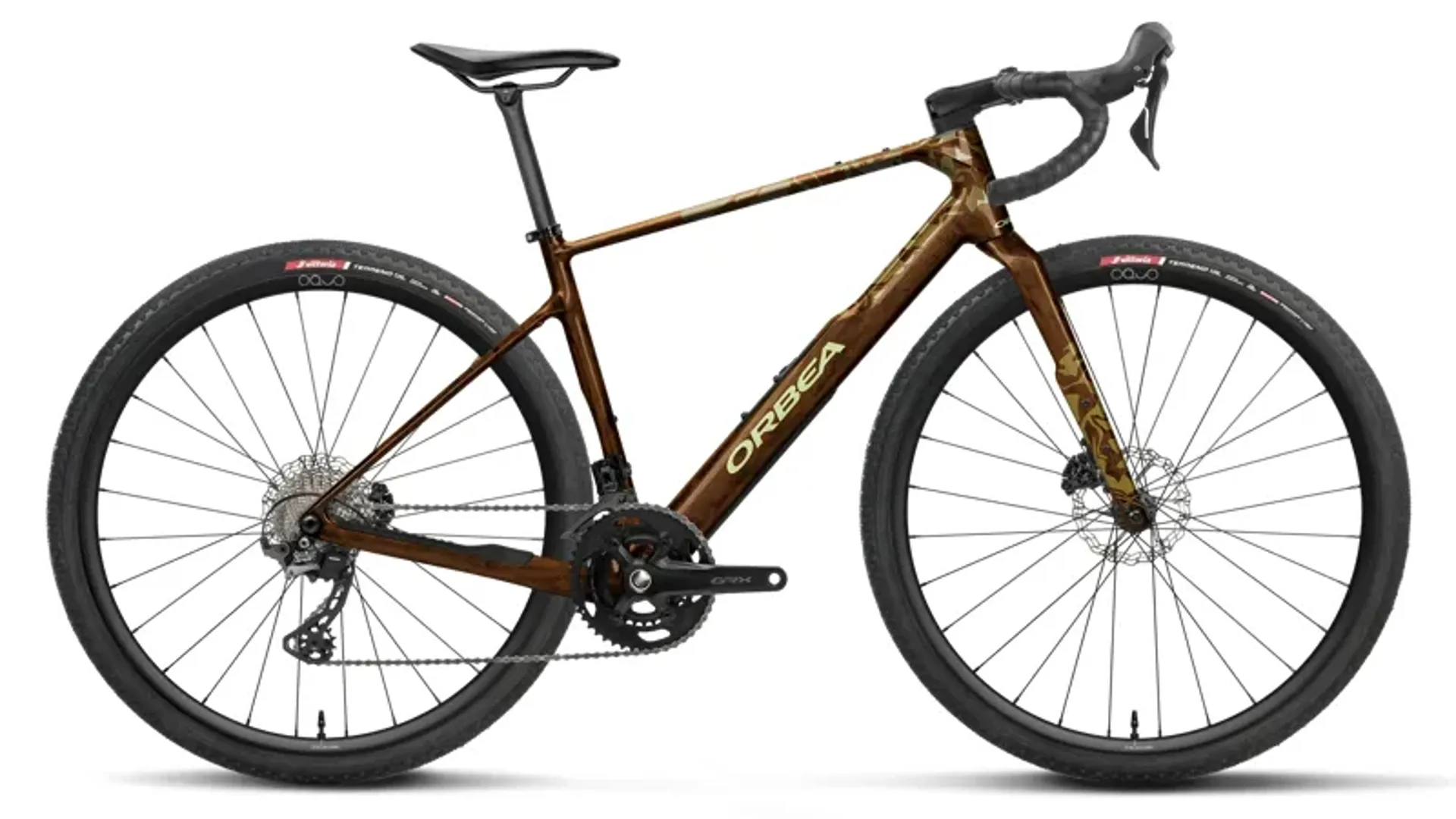

The Orbea Terra M20 Team pairs a vibration-damping OMR carbon frame with Shimano GRX RX820 2x12 gearing and Oquo RC25PRO wheels. Wide 45mm tyres, LOCKR XXL storage and multiple mounts create a versatile setup for gravel adventures and long-distance riding.
Key Features:
- OMR carbon gravel frame with vibration damping, UDH and LOCKR XXL storage
- Full carbon Orbea Terra Race ICR fork with MMS mounts and mudguard fittings
- Shimano GRX RX820 2x12-speed drivetrain with wide-range 11-36T cassette
- Shimano GRX RX820 hydraulic disc brakes for controlled stopping
- Oquo Road Control RC25PRO wheels
- Vittoria Terreno T30 45mm tyres with fast-rolling, fine-loose gravel tread
- LOCKR XXL storage and multiple mounts add long-distance versatility
The Orbea Terra M20 Team is a carbon gravel bike designed to balance efficient riding with the comfort, control and practicality needed for longer adventures. Its gravel-specific geometry, high-volume tyres and extensive mounting options make it well suited to faster gravel rides, long-distance events and bikepacking.
The OMR carbon frame uses monocoque construction and a carefully developed carbon layup to balance stiffness, strength and compliance. Orbea has designed the frame to filter some of the harsh vibrations generated by rough gravel surfaces, helping reduce fatigue on longer rides while retaining an efficient pedalling platform.
Dedicated gravel geometry aims to provide predictable handling when the surface becomes loose or uneven while keeping the Terra responsive on faster, smoother sections. The frame uses a 12x142mm rear thru-axle and UDH dropout, with UDH making replacement hangers easier to source and providing compatibility with a growing range of drivetrains.
The full carbon Orbea Terra Race ICR fork uses a tapered steerer and 12x100mm thru-axle. Carbon construction helps keep weight down while offering some vibration damping, and Orbea's MMS multi-mount system provides additional attachment points for luggage and equipment.
Shimano GRX RX820 provides a gravel-specific 2x12-speed drivetrain. RX820 shifters and front and rear derailleurs are paired with a 48/31T GRX chainset and 11-36T cassette, giving the Terra a broad spread of ratios for varied gradients and surfaces.
The 2x12 setup combines useful low gearing for steep climbs and loaded riding with smaller steps between ratios than a wide-range 1x drivetrain. This makes it easier to maintain a comfortable cadence when a route regularly moves between tarmac, fast gravel and sustained climbs.
Shimano GRX RX820 hydraulic disc brakes provide consistent braking with useful modulation. Their gravel-focused controls and hydraulic operation make it easier to manage braking on loose surfaces, technical descents and in changing weather conditions.
Oquo Road Control RC25PRO wheels complement the Terra's mixed-surface focus. They're paired with 45mm Vittoria Terreno T30 Gravel Endurance tyres, providing plenty of volume for grip, cushioning and control over rougher surfaces.
The Terreno T30 uses a relatively fine tread designed to roll efficiently on hardpack and faster gravel while still providing traction when the surface becomes finer and looser. The generous 45mm width adds cushioning over broken tracks and allows tyre pressures to be adjusted to suit different surfaces and conditions.
An OC Performance XP10 carbon seatpost helps keep weight down while providing another potential source of compliance between the rider and rough surfaces. Its zero-setback design is paired with a 140mm Fizik Terra Argo X7 saddle developed with gravel riding in mind.
The OC Gravel GR31 handlebar uses a compact 70mm reach and 110mm drop, providing multiple hand positions for long days in the saddle while giving you a secure position in the drops when descending or tackling rougher sections.
Orbea's MMS system provides multiple secure mounting points across the frame and fork, giving you options for bottles, bags and additional equipment. Front and rear mudguard compatibility also makes the Terra easier to adapt for wet-weather riding and year-round use.
LOCKR XXL storage is integrated into the carbon frame, providing space inside the downtube for tools, food, clothing and other smaller essentials. The updated system offers 35% more internal volume than Orbea's previous LOCKR design, helping you carry essentials without relying entirely on external bags.
The frame is also power meter compatible, making it straightforward to add power measurement for training, pacing or long-distance events in the future.
With its OMR carbon frameset, complete GRX RX820 2x12 drivetrain, Oquo RC25PRO wheels and high-volume 45mm tyres, the Terra M20 Team is a well-rounded option for riders covering varied terrain. The combination of closer 2x gearing, integrated storage and extensive mounting points is particularly useful for long-distance gravel rides where efficiency, comfort and carrying capacity all matter.
