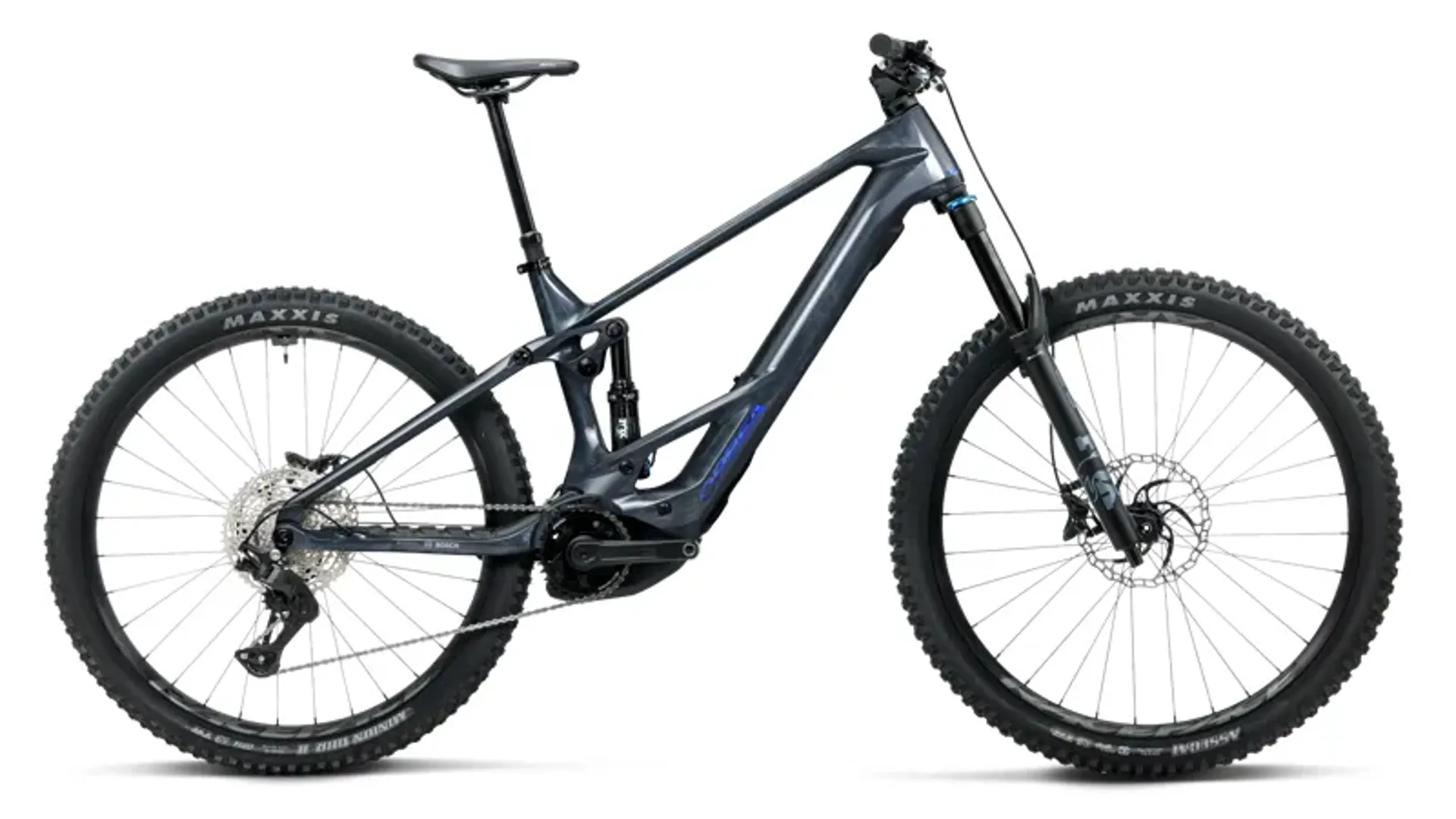

With its OMR carbon frame, 150mm Fox suspension and 29in wheels, the Wild TR M20 is built for technical trail riding. Bosch CX power and a 750Wh battery help take care of the climbs, while Shimano 12-speed shifting gives you plenty of range.
Key Features:
- Lightweight Orbea OMR carbon frame with 29in wheels and trail geometry
- Fox 36 Float Performance GRIP 3-Pos fork with 150mm travel
- Fox Float Performance 2-Pos Evol LV shock with 150mm rear travel
- Shimano Deore 12-speed drivetrain with wide-range 10-51t cassette
- Shimano MT420 hydraulic disc brakes
- 29in Race Face AR 30c rims with 2.5in Maxxis Assegai EXO+ tyres
- Tubeless-ready rims and tyres allow an easy move to a tubeless setup
Drive Information:
- Motor: Bosch Performance Line CX Gen 5, up to 120Nm torque
- Battery: Bosch PowerTube 750Wh
- User Interface: Bosch System Controller BRC3100
The Orbea Wild TR M20 brings a carbon frame to the Wild TR platform, combining full-power electric assistance with 150mm of suspension travel. Orbea's OMR carbon construction helps keep weight down while maintaining the stiffness needed for accurate handling on technical trails.
Its 29in wheels help carry speed across roots, rocks and rough ground, while the Concentric Boost rear end uses a 12x148mm axle for a solid connection between the frame and rear wheel. The Wild TR's geometry is designed to give you confidence on steeper and more technical sections without losing the responsive feel that makes a trail bike enjoyable across varied terrain.
A Fox 36 Float Performance fork provides 150mm of front travel. Its 36mm chassis offers plenty of support for technical riding, while the GRIP damper features three-position adjustment to help you adapt the fork to different terrain. A 15x110mm Boost axle adds stiffness at the front wheel for more precise steering.
At the rear, a custom-tuned Fox Float Performance 2-Pos Evol LV shock controls 150mm of rear-wheel travel. Its air spring makes it straightforward to adjust the suspension for rider weight, while the two-position adjustment lets you alter the shock's behaviour to suit climbing and descending.
Bosch's Performance Line CX Gen 5 motor provides the assistance, delivering up to 120Nm of torque. Strong support helps maintain momentum on steep and technical climbs, while the system responds to rider input to make managing power easier when traction is limited.
A 750Wh Bosch PowerTube battery provides the capacity for longer trail rides and routes with plenty of climbing. Integrating the battery into the downtube keeps it protected while helping maintain a clean frame design and centralised weight distribution.
The Bosch System Controller BRC3100 provides a simple interface for the electric system. Integrated neatly into the frame, it gives you quick access to essential information such as battery charge and assistance mode without adding a large display to the cockpit.
Shimano Deore 12-speed shifting provides a broad range of gears for tackling varied terrain. The M7200 SGS Shadow Plus rear mech is paired with an M6200 I-Spec EV shifter and 10-51t cassette, giving you low gearing for steep climbs alongside useful higher ratios for faster sections. An e*thirteen Helix Core chainset and Shimano M6100 chain complete the drivetrain.
Shimano MT420 hydraulic disc brakes provide dependable braking control for managing speed on technical descents, while the wide 800mm OC Mountain Control MC30 handlebar and short MC21 stem give you plenty of leverage when guiding the bike through rough or tighter sections.
Race Face AR 30c tubeless-ready rims provide a 30mm internal width suited to the Wild TR's high-volume trail tyres. Both wheels are fitted with 2.5in Maxxis Assegai tyres using the soft 3C MaxxGrip compound for traction on technical terrain. EXO+ casings add protection and support when riding over rocks and roots, while the tubeless-ready construction gives you the option to run a tubeless setup.
A Fizik Aidon saddle with manganese rails completes a build focused on practical trail performance. Rather than adding unnecessary complexity, the Wild TR M20 combines a lightweight carbon chassis with proven Fox suspension, wide-range Shimano gearing and a full-power Bosch drive system.
For riders who want the assistance and battery capacity of a full-power e-MTB but still value responsive handling, the Wild TR M20 offers a well-rounded setup for technical trails, longer rides and routes where challenging climbs are part of the fun.
