Frame
		Carbon HMX Integrated Suspension Technology Flex Pivot, Adjustable head angle Syncros Cable Integration System, UDH Interface, 12x148mm with 55mm Chainline

	-

Travel
		Front: 140mm, Rear: 130mm

	-

Fork
		FOX 34 Rhythm Air Grip3-Modes, Kabolt 15x110mm axle, tapered steerer 44mm offset, Reb. Adj., Lockout, 140mm travel

	-

Rear Shock
		FOX NUDE 6T EVOL Trunnion SCOTT custom w. travel, geo adj. 3 modes: Lockout-Traction Control-Descend Low Speed Adj., Custom large Air volume, Reb. Adj. Bearing Hardware, Travel 130-90-Lockout, T165X45mm

	-

Remote System
		SCOTT TwinLoc 2 Technology Suspension & Dropper Remote 3 Suspension modes

	-

Drive Unit
		TQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh, US: 20mph

	-

Battery
		TQ Internal 360Wh + Range Extender 160Wh

	-

Display
		TQ HPR Bluetooth, ANT+, Dedicated Smartphone app

	-

Charger
		TQ 100-240V-4A

	-

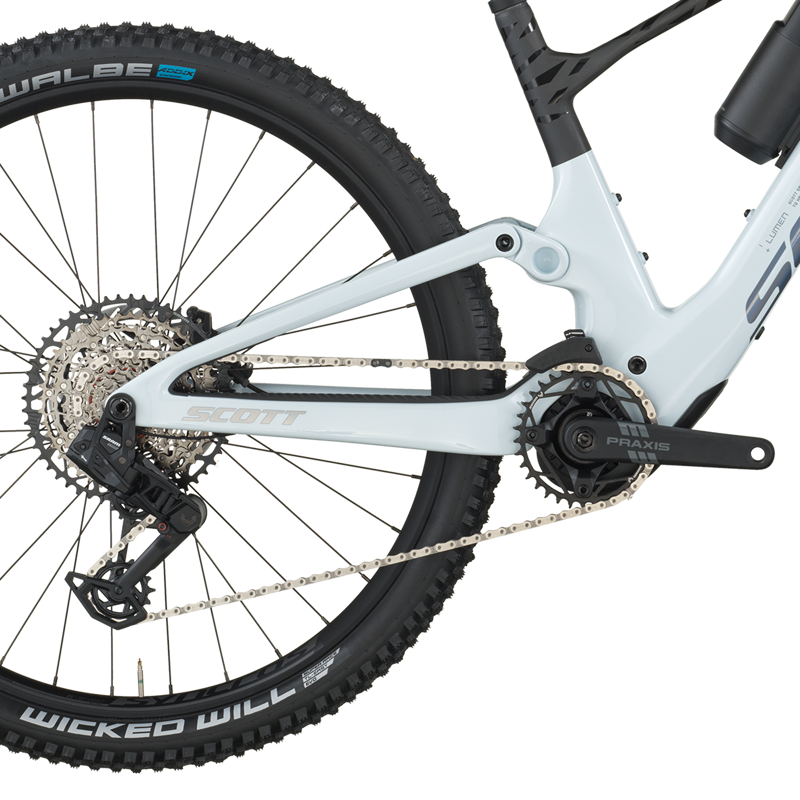

Rear Derailleur
		SRAM S1000 Eagle AXS Transmission 12 Speed Wireless Electronic Shift System

	-

Shifters
		SRAM AXS Pod Controller

	-

Crankset
		Praxis Alloy

	-

Chainguide
		e*thirteen, e*spec Slider

	-

Chainring
		Praxis spider, SRAM Eagle Transmission 34T chainring

	-

Chain
		SRAM CN GX Eagle Transmission

	-

Cassette
		SRAM Eagle XS 1270 Transmission 10-52

	-

Brakes
		SRAM Motive Bronze Stealth 4-Piston Disc

	-

Rotor
		SRAM HS2 CL Rotors, F&R 180mm

	-

Handlebar
		Syncros Fraser 2.0 DC Alloy 6061 D.B. Syncros Performance XC lock-on grips mini Rise, back sweep 8°, 760mm

	-

H'stem
		Syncros DC 2.0 Syncros Cable Integration System 0° rise, 6061 Alloy, 31.8mm, 1 1/8"

	-

Seatpost
		Syncros Duncan Dropper Post 2.0 31.6mm, S & M size 125mm, L size 150mm, XL size 170mm

	-

Seat
		Syncros Tofino 1.5 Regular Titanium rails

	-

Headset
		Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB

	-

Hub (Front)
		Formula CL-811, 15x110mm

	-

Hub (Rear)
		Formula CL-148S, 12x148mm

	-

Spokes
		Stainless Black 15G, 1.8mm

	-

Rims
		Alexrims X-30S, 32H, 30mm Tubeless ready

	-

Front Tire
		Schwalbe Wicked Will 29x2.4" EVOSuper Race, TLE, 67EPI, Addix Speed Soft

	-

Rear Tire
		Schwalbe Wicked Will 29x2.4" EVOSuper Race, TLE, 67EPI, Addix Speed Grip

	-

Approx weight in KG
		17.8 Tubless setup without RE (1.1kg)

	-

Approx weight in LBS
		39.24 Tubless setup without RE (1.1kg)

	-

Max. System Weight
		130kg The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
