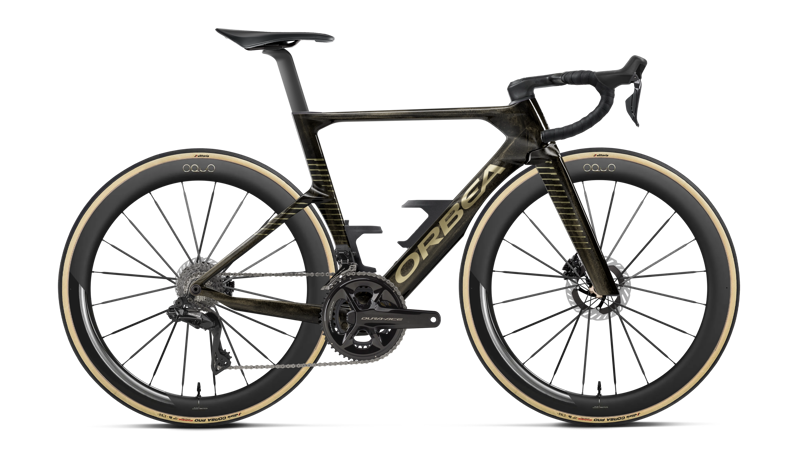

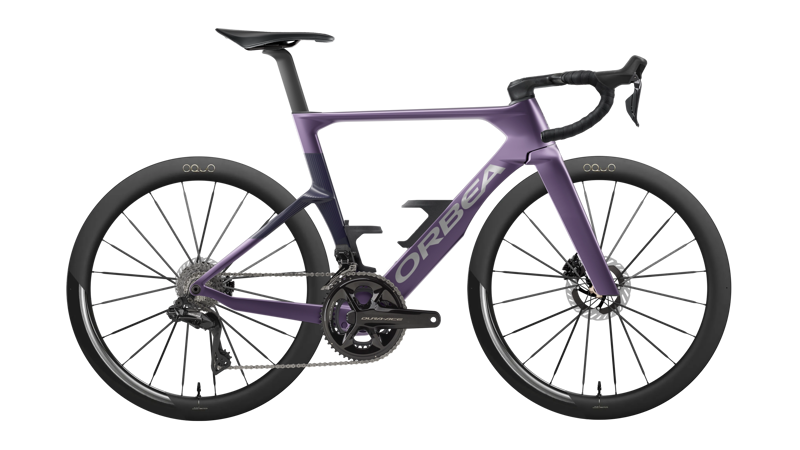

2027 Orbea Orca Aero M10i LTD PWR Road Bike
Ultimate Aerodynamic Performance with Integrated Power Measurement
The 2027 Orbea Orca Aero M10i LTD PWR is engineered for riders who demand every possible performance advantage. Developed around Orbea's Aero 360º philosophy, every element of the bike has been optimised to reduce aerodynamic drag while maintaining exceptional stiffness, efficiency and handling.
Built with Orbea's latest OMX carbon frame, equipped with Shimano's flagship Dura-Ace Di2 electronic groupset with an integrated power meter, and rolling on premium OQUO Road Aero RA57LTD Carbon Spoke wheels, the Orca Aero M10i LTD PWR is designed for competitive road racing, fast club rides and riders who refuse to compromise on speed.
Aero 360º – Designed for Free Speed
Every detail of the Orca Aero has been developed as part of Orbea's Aero 360º concept.
Rather than focusing solely on the frame, Orbea has optimised the complete system to improve aerodynamic efficiency. Extensive CFD analysis and carefully shaped airfoil tube profiles help the Orca Aero maintain aerodynamic performance across real-world wind angles, allowing riders to conserve energy while maintaining higher average speeds.
Premium OMX Carbon Frame
At the heart of the bike is Orbea's latest OMX carbon monocoque frame, engineered to provide an exceptional stiffness-to-weight ratio.
The new OMX carbon layup combines premium Toray carbon fibres with carefully optimised fibre orientation and layering to maximise power transfer while minimising unnecessary weight.
Frame features include:
- Orbea Orca Aero OMX Carbon frame
- Monocoque carbon construction
- Internal cable routing
- BB386 bottom bracket
- Powermeter compatible
- EC/DC compatible headset
- 12 x 142mm thru axle
- Speed Release compatible dropouts
The result is a frame that responds instantly under acceleration while maintaining outstanding stability at race speeds.
Full Carbon OMX Fork
Complementing the frame is Orbea's OMX full carbon fork, designed to maximise aerodynamic efficiency and steering precision.
Features include:
- Full carbon construction
- 1-1/8" to 1.5" tapered steerer
- 12 x 100mm thru axle
- Speed Release compatible dropouts
The aerodynamic fork profile helps reduce drag while delivering confident front-end handling on fast descents and technical corners.
Shimano Dura-Ace Di2 with Integrated Power Meter
The Orca Aero M10i LTD PWR is equipped with Shimano's flagship Dura-Ace Di2 12-speed electronic groupset for precise, lightning-fast shifting.
Power measurement comes from the Shimano Dura-Ace R9200-P crankset, allowing riders to monitor performance with accurate power data during training and racing.
Groupset specification includes:
- Shimano Dura-Ace R9200-P Power Meter crankset
- 52/36T chainrings
- Shimano Dura-Ace Di2 R9250 front derailleur
- Shimano Dura-Ace Di2 R9250 rear derailleur
- Shimano R9270 hydraulic shift/brake levers
- Shimano Dura-Ace R9200 11–34T 12-speed cassette
- Shimano CN-9100 chain
This premium drivetrain provides smooth electronic shifting and a versatile gear range suitable for everything from high-speed racing to challenging mountain climbs.
Shimano Hydraulic Disc Brakes
Braking performance comes from Shimano R9270 hydraulic disc brakes, providing powerful stopping performance and excellent modulation in all weather conditions.
The bike is fitted with:
- 160mm front rotor
- 140mm rear rotor
This race-focused braking setup delivers confidence without unnecessary weight.
OQUO Road Aero RA57LTD Carbon Spoke Wheels
The Orca Aero M10i LTD PWR rolls on premium OQUO Road Aero RA57LTD Carbon Spoke wheels, designed specifically for aerodynamic efficiency and responsive acceleration.
The wheelset is paired with Vittoria Corsa Pro Speed 29-622 TLR tyres, providing low rolling resistance, excellent grip and tubeless-ready performance for modern road racing.
Integrated Carbon Cockpit
The bike features Orbea's OC SH-RA10 integrated carbon handlebar and stem, creating a clean, aerodynamic front end.
Cockpit features include:
- Integrated carbon construction
- 80mm reach
- 125mm drop
Internal cable routing contributes to both the bike's streamlined appearance and its aerodynamic performance.
Optimised for Modern Road Tyres
The latest Orca Aero has been engineered around modern tyre sizes, offering clearance for 29mm to 37mm tyres.
This allows riders to choose wider tyres for increased comfort, grip and efficiency while maintaining the bike's aerodynamic performance.
Flush Bottle Cages
The Orca Aero's specially designed Flush Bottle Cages sit lower within the frame and have been carefully shaped to integrate seamlessly with the downtube and seat tube.
This design improves airflow around the frame, reducing aerodynamic drag while maintaining practical bottle access.
Integrated Service Box
Practicality is built into the Orca Aero through Orbea's Service Box and included Service Case.
Designed to carry ride essentials, the integrated storage follows the contours of the frame and wheel to maintain a continuous aerodynamic profile while keeping tools close at hand.
Spinblock Protection
Orbea's Spinblock system limits handlebar rotation to 90 degrees.
This helps prevent over-rotation, reducing the risk of paint damage, frame damage and potential safety issues during transport, maintenance or crashes.
Premium Finishing Kit
The Orca Aero M10i LTD PWR is completed with premium components including:
- OC Road Aero RA11 Carbon seatpost
- Fizik Vento Antares R1 Carbon Rail saddle
- OC Components handlebar tape
- OC Toolbox SB04 integrated storage
Each component has been selected to complement the bike's aerodynamic design and race-ready performance.
Key Features
- Orbea Orca Aero OMX Carbon monocoque frame
- New OMX premium carbon layup
- Aero 360º aerodynamic design
- Full carbon OMX fork
- Shimano Dura-Ace Di2 12-speed electronic groupset
- Shimano Dura-Ace R9200-P integrated power meter
- Shimano Dura-Ace 52/36T crankset
- Shimano Dura-Ace 11–34T cassette
- Shimano R9270 hydraulic disc brakes
- 160mm front / 140mm rear rotors
- OQUO Road Aero RA57LTD Carbon Spoke wheelset
- Vittoria Corsa Pro Speed 29-622 TLR tyres
- OC SH-RA10 integrated carbon cockpit
- OC Road Aero RA11 carbon seatpost
- Fizik Vento Antares R1 Carbon Rail saddle
- Aero 360º technology
- Integrated Service Box and Service Case
- Flush aerodynamic bottle cages
- Spinblock steering protection
- Compatible with 29–37mm tyres
Why Choose the 2027 Orbea Orca Aero M10i LTD PWR?
The Orbea Orca Aero M10i LTD PWR has been developed for riders who want maximum aerodynamic performance combined with premium components and real-world practicality. Its advanced OMX carbon frame, Aero 360º design philosophy, Shimano Dura-Ace Di2 electronic groupset with integrated power meter and OQUO carbon-spoked wheelset create a complete race package that delivers speed, efficiency and precision on every ride. Whether racing, training or chasing personal bests, the Orca Aero is built to help you ride faster with less effort.
Summary
The 2027 Orbea Orca Aero M10i LTD PWR combines Orbea's latest OMX carbon monocoque frame, Aero 360º aerodynamic technology, Shimano Dura-Ace Di2 12-speed electronic shifting, an integrated Shimano R9200-P power meter, and OQUO Road Aero RA57LTD Carbon Spoke wheels to create an uncompromising race bike. With integrated storage, aerodynamic bottle cages, premium finishing kit and clearance for modern road tyres, it is designed to help riders achieve maximum speed, efficiency and performance on every ride.
Please note: Bike specifications are subject to change without prior notice.
