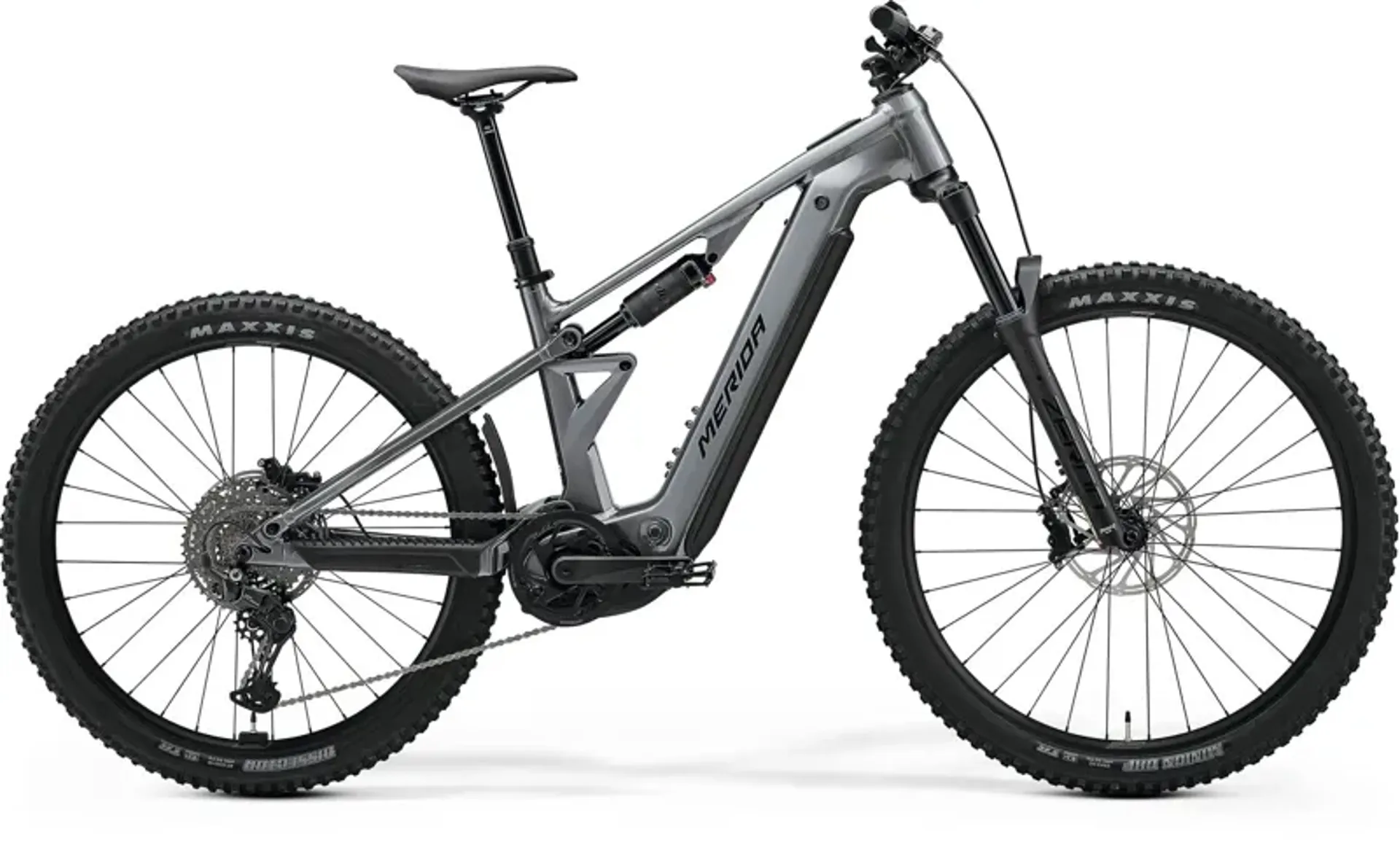

2026 Merida Etmo 500 Pro Electric Mountain Bike - Gunmetal Grey Black

Season:2026

Brand:Merida

Code:P-R936

The Etmo 500 Pro delivers capable full-suspension trail performance with powerful Bosch assistance and dependable components. Its mixed wheel setup, progressive geometry and 140mm travel create a stable, engaging ride on varied terrain.

Key Features:

  • Aluminium frame with 140mm travel and progressive trail geometry
  • SR Suntour Zeron 36X air fork with 140mm travel
  • SR Suntour Edge X R rear shock with 140mm travel
  • Shimano CUES 1x10 drivetrain with wide-range cassette
  • SRAM DB4 Stealth 4-piston hydraulic disc brakes
  • Mullet wheel setup with Maxxis tubeless-ready trail tyres
  • Long-travel dropper post improves control on steep descents
  • Available with 0% APR finance

Drive Information:

  • Bosch Performance CX motor with 85Nm torque, upgradeable to 120Nm
  • Integrated 800Wh battery for extended trail rides
  • Bosch Purion 200 display and remote control system

The Merida Etmo 500 Pro is designed to deliver dependable full-suspension e-MTB performance without unnecessary complexity. Inspired by Merida’s longer-travel e-bike platforms, the aluminium frame combines confident trail geometry with 140mm of rear suspension travel to create a capable and versatile ride feel across technical trails, flowing singletrack and longer off-road adventures.

Its mullet wheel setup pairs a 29in front wheel for rollover confidence with a 27.5in rear wheel for improved agility and manoeuvrability through tighter corners and technical sections. Combined with Merida’s proven geometry, the result is a planted and balanced ride that feels stable on descents while remaining responsive on climbs and flatter terrain.

Suspension duties are handled by an SR Suntour Zeron 36X air fork and SR Suntour Edge X R rear shock, both offering 140mm travel to smooth rough terrain and maintain traction across roots, rocks and uneven surfaces. A long-travel Merida dropper post further improves confidence when descending steeper trails.

Power comes from Bosch’s latest Performance Line CX motor delivering 85Nm of torque, paired with a high-capacity 800Wh battery for impressive range and strong climbing support. Riders also have the option to unlock Bosch Performance Update 2.0 through the Bosch Flow app, increasing peak torque output to 120Nm while allowing motor behaviour to be customised to suit riding style and terrain.

Shimano’s CUES 1x10 drivetrain offers reliable shifting and durable LinkGlide technology that is designed to cope well with the demands of e-bike riding. Powerful SRAM DB4 Stealth four-piston hydraulic brakes with 200mm rotors provide confident braking performance on steep and technical terrain.

Tubeless-ready Merida wheels are fitted with aggressive Maxxis tyres, including a Minion DHF front and Dissector rear combination, giving dependable grip and predictable handling in mixed trail conditions. The Etmo 500 Pro offers a well-rounded package for riders looking to explore more demanding trails with the added support and range of a modern full-power e-MTB.

Technical Information
  • Frame
    ETMO LITE
  • Material
    aluminium
  • Suspension travel
    142mm
  • Wheelsize
    27.5" x 2,6” max.
  • Axle standard
    148x12mm
  • Intube
    *
  • Frame size
    Short, Mid, Long, XLong
  • Color
    GUNMETAL GREY (BLACK)
  • Fork
    SR Suntour Zeron 36X
  • Fork type
    Air
  • Fork suspension travel
    140mm
  • Fork offset
    44mm
  • Max wheelsize
    29x2.6"
  • Shock
    SR Suntour Edge X
  • Brakes
    Sram DB4 stealth
  • Brake pistons
    4 piston
  • Rotors
    Sram CenterLine
  • Rotor size
    200mm
  • Headset
    FSA CRII NO.80
  • Handlebar
    MERIDA COMP TR II
  • Handlebar material
    aluminium
  • Handlebar width
    780mm
  • Handlebar rise
    35mm
  • Handlebar stem
    MERIDA EXPERT eTR II
  • Handlebar stem material
    aluminium
  • Handlebar stem diameter
    35mm
  • Stem angle
    0°
  • Stem mount
    Supernova mount
  • Stem length
    40 mm all sizes
  • Grip
    MERIDA COMP TR
  • Derailleur (r)
    Shimano Cues U6000 GS
  • Shifters
    Shimano MT500-L / Shimano Cues U6000-10
  • Seat post
    MERIDA EXPERT TR II
  • Seat post diameter
    34.9mm
  • Seat post setback
    0mm
  • Seat post travel
    125mm (XS), 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
  • Seat clamp
    MERIDA EXPERT
  • Saddle
    MERIDA COMP SL
  • Saddle mount
    V-mount
  • Saddle accessory
    incl. MERIDA minitool
  • Pedal
    VP VPE-527
  • Chain
    Shimano LG500
  • Chainwheel
    FSA Direct Mount Steel Chainring
  • Chainring teeth
    36 teeth
  • Crank
    FSA CK-220 wide E-Bike Forged Crankset
  • Crank length
    160mm for all sizes
  • Freewheel
    Shimano Cues LG400
  • Freewheel range
    11-48 teeth
  • Freewheel speed
    10 speed
  • Hubs
    Shimano TC500-B / Shimano TC500-HM-B
  • Front hub width
    110x15mm
  • Spoke holes (Hub)
    32
  • Hub brake mount
    Centerlock
  • Rear hub width
    148x12mm
  • Rim
    MERIDA COMP TR II
  • Rim inner width
    28mm
  • Rim material
    aluminium
  • Rim compatibility
    Tubeless ready (tubeless tape and valves not included)
  • Rim size
    front 29", rear 27.5"
  • Tyre front
    Maxxis Minion DHF
  • Tyre front specification
    29x2.5", EXO wire, tubeless ready
  • Tyre rear
    Maxxis Dissector
  • Tyre rear specification
    27.5x2.4" wired, tubeless ready
  • Axles
    MERIDA EXPERT TR
  • Axle accessories
    including removeable lever, 6/4mm allen key
  • Spokes
    Black stainless
  • Spoke nipples
    black
  • Light front
    USB rechargable Chance Good CG-119PG-BLACK(1)
  • Light rear
    USB rechargable Chance Good CG-404RG-BLK
  • Fender
    RF-001 mini fender
  • Drive unit
    Bosch Performance Line CX
  • Battery
    Bosch PowerTube 800
  • Battery capacity
    800Wh
  • Battery lock
    Abus Key
  • Display
    Bosch Purion 200
  • Max. weight
    140 kg
  • Geometry Tyre Sizes
    29/27.5" for all sizes
  • ST seat tube [mm]
    Short: 380, Mid: 405, Long: 430, XLong: 455
  • TT top tube [mm]
    Short: 556, Mid: 584, Long: 609, XLong: 636
  • CS chain stay length [mm]
    446 for all sizes
  • HTA head tube angle [°]
    65 for all sizes
  • STA seat tube angle [°]
    78.5 for all sizes
  • BD bottom bracket drop [mm]
    20 for all sizes
  • HT head tube [mm]
    Short: 105, Mid: 115, Long: 115, XLong: 125
  • FL fork length [mm]
    580 for all sizes
  • FO fork offset [mm]
    44 for all sizes
  • R reach [mm]
    Short: 425, Mid: 450, Long: 475, XLong: 500
  • S stack [mm]
    Short: 644, Mid: 653, Long: 653, XLong: 662
  • WB wheel base [mm]
    Short: 1202, Mid: 1231, Long: 1256, XLong: 1285
  • SH stand over height [mm]
    Short: 745, Mid: 748, Long: 751, XLong: 754
  • Spare Parts (Frame)
    AM0, AM7, AM8
  • Spare Part No. 1
    Item-No: A2300000696, Name: BOLT, Info: M6x1 OD15/17mm L74mm, Pieces: 1
  • Spare Part No. 2
    Item-No: A2221000040, Name: BEARING, Info: 172607V-2RS OD26mm ID17mm W7mm, Pieces: 1
  • Spare Part No. 3
    Item-No: A2294000102, Name: WASHER, Info: OD21mm ID17.1mm H3mm, Pieces: 1
  • Spare Part No. 4
    Item-No: A2294000016, Name: WASHER, Info: OD19mm ID15.1mm H3mm, Pieces: 3
  • Spare Part No. 5
    Item-No: A2221000043, Name: BEARING, Info: 3802V-2RS OD24mm ID15mm W7mm, Pieces: 3
  • Spare Part No. 6
    Item-No: A2300000609, Name: SCREW, Info: M10x1 L15mm, Pieces: 1, Torque NM: 15~17
  • Spare Part No. 7
    Item-No: A2300000625, Name: BOLT, Info: M6x1 OD10mm L39mm, Pieces: 1
  • Spare Part No. 8
    Item-No: A2298000113, Name: SCREW, Info: M6x1 L16mm, Pieces: 4, Torque NM: 8~10
  • Spare Part No. 9
    Item-No: A2294000196, Name: WASHER, Info: for M6 sunkenhead screw OD16mm, Pieces: 4
  • Spare Part No. 10
    Item-No: A2300000693, Name: BOLT, Info: M6x1 OD12mm L62mm, Pieces: 1
  • Spare Part No. 11
    Item-No: A2300000803, Name: SCREW, Info: M8x1 L49mm, Pieces: 1, Torque NM: 18~20
  • Spare Part No. 12
    Item-No: A2294000224, Name: LOCK RING, Info: for ID21, Pieces: 1
  • Spare Part No. 13
    Item-No: A2294000223, Name: WASHER, Info: OD15.5mm ID12.1mm H3mm, Pieces: 2
  • Spare Part No. 14
    Item-No: A2221000035, Name: BEARING, Info: 6801V-2RS OD21mm ID12mm W5mm, Pieces: 2
  • Spare Part No. 15
    Item-No: A2031000094, Name: LINK, Pieces: 1
  • Spare Part No. 16
    Item-No: A2262000059, Name: WASHER, Info: OD15.5mm ID12.1mm H31mm, Pieces: 1
  • Spare Part No. 17
    Item-No: A2300000743, Name: SCREW, Info: M15x1 L20.5mm, Pieces: 2, Torque NM: 23~25
  • Spare Part No. 18
    Item-No: A2294000225, Name: LOCK RING, Info: for ID24, Pieces: 2
  • Spare Part No. 19
    Item-No: A2300000652, Name: BOLT, Info: M6x1 OD10mm L18.8mm, Pieces: 2
  • Spare Part No. 20
    Item-No: A2294000212, Name: WASHER, Info: OD14mm ID10.1mm H3.1mm, Pieces: 4
  • Spare Part No. 21
    Item-No: A2294000211, Name: LOCK RING, Info: for ID22, Pieces: 2
  • Spare Part No. 22
    Item-No: A2221000060, Name: BEARING, Info: 6900V-2RS OD22mm ID10mm W6mm, Pieces: 2
  • Spare Part No. 23
    Item-No: A2292000141, Name: WASHER, Info: OD13mm ID9mm H1mm, Pieces: 1
  • Spare Part Headset No. 1
    Item-No: A2191000301, Name: HEAD SET, Info: FSA ZS56/ZS66 Cable through Headset, Pieces: 1
  • Spare Part Headset No. 2
    Item-No: A2298000160, Name: SCREW, Info: M4x0.7 L10mm, Pieces: 8, Torque NM: 3~5
  • Spare Part Headset No. 3a
    Item-No: A2263000069, Name: BLIND PLUG, Info: for top tube opening, Pieces: 1
  • Spare Part Headset No. 3b
    Item-No: A9098000029, Name: BOSCH OEM PART, Info: Bosch BRC 3100, Pieces: 1, Torque NM: 3~5
  • Spare Part Headset No. 4
    Item-No: A2298000144, Name: SCREW, Info: M5x0.8 L10mm, Pieces: 4, Torque NM: 4~6
  • Spare Part Headset No. 5
    Item-No: A2143000203, Name: BUSHING, Info: For Screwhole, Pieces: 1
  • Spare Part Headset No. 6.1
    Item-No: A2263000102, Name: COVER, Info: for battery (800Wh), Pieces: 1
  • Spare Part Headset No. 6.2
    Item-No: A2263000067, Name: COVER, Info: for battery, Pieces: 1
  • Spare Part Headset No. 7
    Item-No: A2300000318, Name: SCREW, Info: M4x0.7 L12mm, Pieces: 4, Torque NM: 3~5
  • Spare Part Headset No. 8
    Item-No: A2263000070, Name: COVER MOUNT, Info: Fidlock Pinlock vertical Female, Pieces: 1
  • Spare Part Headset No. 9
    Item-No: A2030000033, Name: MOUNT, Pieces: 1
  • Spare Part Headset No. 10
    Item-No: A2263000081, Name: COVER MOUNT, Info: Fidlock Pinlock vertical Male, Pieces: 1
  • Spare Part Headset No. 11
    Item-No: A2232000064, Name: CHAIN GUIDE, Info: for Bosch with 55mm chainline, Pieces: 1
  • Spare Part Headset No. 12
    Item-No: A2263000103, Name: PROTECTOR, Info: For motor (Bosch CX/PX/PL), Pieces: 1
  • Spare Part Headset No. 13
    Item-No: A2263000104, Name: COVER, Info: Extra Cover for Bosch PX/PL Motor, Pieces: 1
  • Spare Part Headset No. 14
    Item-No: A2298000361, Name: SCREW, Info: M4x0.7 L12mm, Pieces: 3, Torque NM: 3~5
  • Spare Part Headset No. 15
    Item-No: A2292000139, Name: WASHER, Info: OD11mm ID4.5mm H0.8mm, Pieces: 1
  • Spare Part Headset No. 16
    Item-No: A2158000094, Name: PROTECTOR, Info: for chain stay, Pieces: 1
  • Spare Part Headset No. 17
    Item-No: A2002000135, Name: THRU AXLE, Info: EXPERT TR; L=178.5mm M12x1 TL=13.5mm, Pieces: 1
  • Spare Part Headset No. 18
    Item-No: A2298000409, Name: SCREW, Info: M6x1 L12mm, Pieces: 3, Torque NM: 12~14
  • Spare Part Headset No. 19
    Item-No: A2136000158, Name: MOUNT, Info: PM200, Pieces: 1
  • Spare Part Headset No. 20
    Item-No: A2116000284, Name: FENDER, Info: Small Fender, Pieces: 1
  • Spare Part Headset No. 21
    Item-No: A2263000062, Name: MOUNT, Info: for charging port, Pieces: 1
  • Spare Part Headset No. 22
    Item-No: A2143000082, Name: CABLE GUIDE, Info: for mechanical RD cable, Pieces: 1
  • Spare Part Headset No. 23
    Item-No: A2258000099, Name: CABLE GUIDE, Info: for brake and speed sensor/light, Pieces: 1
  • Spare Part Headset No. 24
    Item-No: A9085000045, Name: BOSCH OEM PART, Info: Bosch PT600/800 battery rail, Pieces: 1
  • Spare Part Headset No. 25
    Item-No: A2158000117, Name: PROTECTOR, Info: for cables in head tube, Pieces: 1
  • Spare Part Headset No. 26
    Item-No: A2302000117, Name: NUT, Info: M5 - For battery rail, Pieces: 2
  • Spare Part Headset No. 27
    Item-No: A2302000116, Name: NUT, Info: for Bosch Motor Mount, Pieces: 2
  • Spare Part Headset No. 28
    Item-No: A2143000199, Name: CABLE PLUG, Pieces: 1
  • Spare Part Headset No. 29
    Item-No: A2298000178, Name: SCREW, Info: M5x0.8 L8mm, Pieces: 1, Torque NM: 6~8
  • Spare Part Headset No. 30
    Item-No: A2262000071, Name: BOSCH OEM PART, Info: Sleeve Narrow, Pieces: 2
  • Spare Part Headset No. 31
    Item-No: A2300000765, Name: BOSCH OEM PART, Info: Bolt Narrow, Pieces: 2, Torque NM: 30
  • Spare Part Headset No. 32
    Item-No: A2258000286, Name: CABLE GUIDE, Info: Stick on cable guide (3/4/4 mm), Pieces: 3
  • Spare Part Headset No. 33
    Item-No: A2258000287, Name: CABLE GUIDE, Info: Stick on cable guide (4/5 mm), Pieces: 2
  • Spare Part Fender No. 1
    Item-No: A2115000037, Name: FENDER, Info: Front Fender, Pieces: 1
  • Spare Part Fender No. 2.1
    Item-No: A2117000082, Name: FENDER ACCESSOIRES, Info: Front Fender Strut for XFUSION MIGO 34 fork, Pieces: 1
  • Spare Part Fender No. 2.2
    Item-No: A2117000029, Name: FENDER ACCESSOIRES, Info: Front Fender Strut for SUNTOUR ZERON 36X fork fork, Pieces: 1
  • Spare Part Fender No. 3
    Item-No: A2298000144, Name: SCREW, Info: M5x0.8 L10mm, Pieces: 1
  • Spare Part Fender No. 4
    Item-No: A2302000027, Name: NUT, Info: M5, Pieces: 4
  • Spare Part Fender No. 5
    Item-No: A2298000068, Name: SCREW, Info: M5x0.8 L10mm, Pieces: 4
  • Spare Part Fender No. 6
    Item-No: A2119000001, Name: FENDER ACCESSOIRES, Info: Fork Adapter Suntour, Pieces: 1
  • Spare Part Fender No. 7
    Item-No: A2292000049, Name: WASHER, Info: OD10mm ID5.5mm H1mm, Pieces: 3
  • Spare Part Fender No. 8
    Item-No: A2116000283, Name: FENDER, Info: Long Performance Fender, Pieces: 1
  • Spare Part Fender No. 9
    Item-No: A2298000379, Name: SCREW, Info: M5x0.8 L35mm, Pieces: 2
  • Spare Part Fender No. 10
    Item-No: A2298000250, Name: SCREW, Info: M4x0.7 L12mm, Pieces: 2
  • Spare Part Fender No. 11
    Item-No: A2098000052, Name: CARRIER, Info: for eONE-FORTY LITE only with fender and screws, Pieces: 1
  • Spare Part Fender No. 12
    Item-No: A2298000473, Name: SCREW, Info: M5x0.8 L33mm, Pieces: 2
  • Spare Part Fender No. 13.1
    Item-No: A2292000014, Name: WASHER, Info: OD9mm ID5.2mm H5mm, Pieces: 6
  • Spare Part Fender No. 13.2
    Item-No: A2292000028, Name: WASHER, Info: OD9mm ID5.2mm H3mm, Pieces: 2
  • Spare Part Fender No. 14.1
    Item-No: A2101000053, Name: FENDER, Info: Rear Fender Inside Strut, Pieces: 1
  • Spare Part Fender No. 14.2
    Item-No: A2116000358, Name: FENDER, Info: Rear Fender, Pieces: 1
  • Spare Part Fender No. 15
    Item-No: A2298000430, Name: SCREW, Info: M5x0.8 L10mm, Pieces: 1
  • Spare Part Fender No. 16
    Item-No: A2298000240, Name: SCREW, Info: M6x1 L16mm, Pieces: 1
  • Spare Part Fender No. 17
    Item-No: A2302000016, Name: NUT, Info: M5, Pieces: 1
  • Spare Part Fender No. 18
    Item-No: A2298000239, Name: SCREW, Info: M6x1 L14mm, Pieces: 2
  • Spare Part Fender No. 19
    Item-No: A2298000237, Name: SCREW, Info: M6x1 L20mm, Pieces: 2
  • Spare Part Fender No. 20
    Item-No: A2184000060, Name: KICKSTAND, Info: for rear mount, Pieces: 1
  • Spare Part Fender No. 21
    Item-No: A2292000005, Name: WASHER, Info: OD10mm ID6.2mm H1mm, Pieces: 1
Sizing Information
FRAME SIZEBODY HEIGHT
S< 173 cm
M167 - 183 cm
L177 - 190 cm
XL> 187 cm
Professional Opinion
Home Mountain Biking Bikes Merida Mountain Bikes
