Whyte Karve EVO RSX electric mountain bike with DJI Avinox M2S motor, 800Wh battery, 180mm suspension travel, carbon frame and premium components. Built for gravity riding, bike parks, enduro racing and big mountain adventures.

Whyte Karve EVO RSX electric mountain bike with DJI Avinox M2S motor, 800Wh battery, 180mm suspension travel, carbon frame and premium components. Built for gravity riding, bike parks, enduro racing and big mountain adventures.

Whyte Bikes

2027 Whyte Karve Evo RSX Electric Mountain Bike - Matte Sapphire Blue

£7,299.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

No Quibble Returns

We operate a simple 28 days returns policy that applies to all products sold and delivered direct to you, the customer. This means that for any reason you decide that you no longer want the product you may return it in it's original packaging, un-used and un-soiled with the relevant tags attached back to us and once checked we will refund your money within 28 days or replace your product (subject to stock availability). This offer in non-transferable. We do not accept returns that are customer soiled unless faulty and part of a warrantly claim. Shipping charges are non-refundable.

Refund Policy

We operate a simple 28 days returns policy that applies to all products sold and delivered direct to you, the customer. This means that for any reason you decide that you no longer want the product you may return it in it's original packaging, un-used and un-soiled with the relevant tags attached back to us and once checked we will refund your money within 28 days or replace your product (subject to stock availability). This offer in non-transferable. We do not accept returns that are customer soiled unless faulty and part of a warrantly claim. Shipping charges are non-refundable.

Cancelled / Refunded Orders Prior to Despatch

Occassionally our site will state that a particular item is in stock & avaible for despatch, when in fact it isnt. This is a unfortunate feature of our ecommerce system & the way our supplier SIM's operate and is beyond our control. As a result your order may be cancelled without prior notice if a solution cannot be found in good time. When this happens we will endevour to issue you a full refund as quickly as possible. Please check your emails for notifications on the status of your order. We will accept no responsibilty for emails dropping into spam folders or going un-noticed.


Damaged or Incorrect Items

If for any reason the product you ordered is incorrect or damaged then naturally we would be happy to replace the product or refund you in full. Please notify us via email or phone of any damages / incorrect products within 7 days of your delivery. Proof of damage will be required.


Returning Products

Should you need to return any products to us then you will be responsible for the cost of the postage. A returns form can be downloaded usling the link below. Once completed please include it in the returning package. On receiving the products we will carry out an inspection and should we find that it was in anyway our fault or the product was faulty then we will happily refund you the cost of the postage. Naturally should we believe it not to be our fault then we may choose not to refund any postage and may choose to claim costs of packaging for returning the products to yourself.

The product will be inspected against “reason for return” before any refund or replacement is posted out / made. Please note that will we only pay collection fees on warranty items unless agreed otherwise. Please ensure receipts are forwarded to us with the return where possible. You are responsible for the product until it is recieved by us. Please ensure that any returns are packed correctly to avoid any damage during transport as this may effect your refunded amount.

Our Returns Form can be downloaded here.



2027 Whyte Karve Evo RSX Electric Mountain Bike - Matte Sapphire Blue

Brand:Whyte Bikes

Code:KarveEVORSXBLUBLUMAT

Whyte Karve EVO RSX Electric Mountain Bike

The Ultimate Thrill Ride

The Whyte Karve EVO RSX is the pinnacle of Whyte’s gravity-focused electric mountain bike range, built for riders who live for steep descents, bike park laps, self-shuttled adventures, and the most demanding mountain terrain. Combining long-travel suspension, cutting-edge motor technology, and a premium specification, the Karve EVO RSX delivers exceptional confidence, control, and power when the trails get truly extreme.

Designed around a lightweight and incredibly capable uni-directional carbon fibre front triangle paired with a durable aluminium rear swingarm, the Karve EVO RSX offers the perfect balance of stiffness, strength, and responsiveness. Whyte’s adjustable geometry system allows riders to fine-tune handling characteristics, while factory-fitted frame protection helps keep the bike looking its best ride after ride.

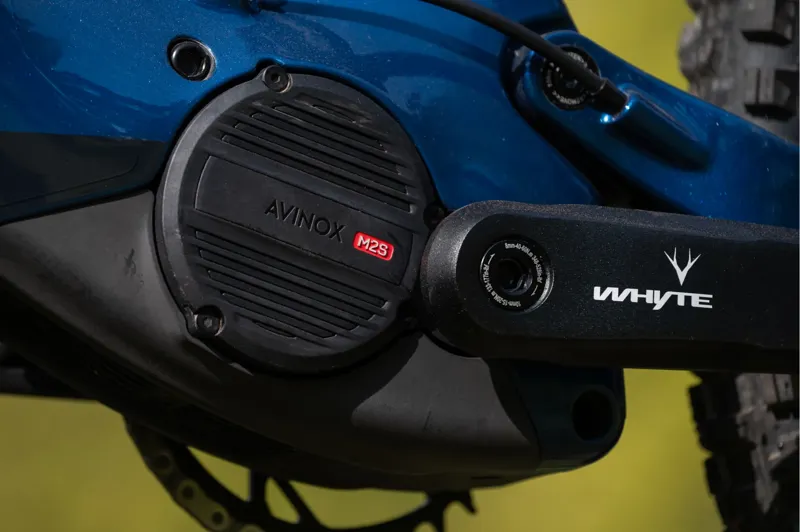

Power comes from the latest DJI Avinox M2S drive system, delivering an incredible 150Nm of torque and up to 1300W peak power. Whether you're tackling steep climbs, powering back to the top for another descent, or exploring big mountain terrain, the Avinox system provides instant, natural-feeling assistance and outstanding performance. Five riding modes – Auto, Eco, Trail, Turbo and Boost – allow riders to tailor the bike’s power delivery to suit the terrain and riding style.

An integrated 800Wh battery provides the range needed for all-day adventures and repeated uplift-free runs. Combined with a fast-charging system, the battery can be recharged quickly, ensuring more time riding and less time waiting.

Built to handle the roughest trails imaginable, the Karve EVO RSX features 180mm of Whyte custom-tuned suspension travel front and rear. The premium RockShox ZEB Ultimate fork and RockShox Vivid Ultimate rear shock work together to absorb big impacts, maintain traction through technical terrain, and provide exceptional stability at speed. From rock gardens and steep chutes to bike park jumps and alpine descents, the EVO RSX remains composed and confidence inspiring.

A mixed-wheel setup featuring a 29-inch front wheel and 27.5-inch rear wheel delivers the perfect combination of high-speed stability and agile handling. Riders seeking an alternative setup can also configure the bike as a full 29er, offering additional versatility for different riding styles and terrain preferences.

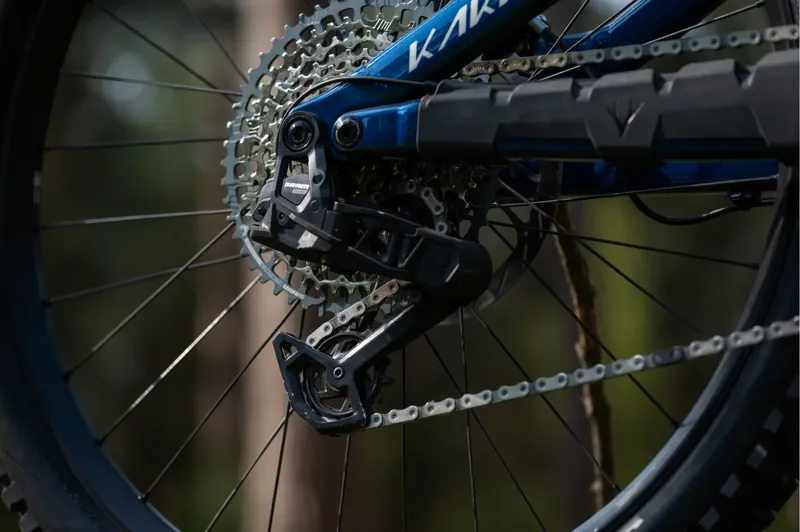

Premium components throughout the build ensure uncompromising performance. SRAM Eagle AXS wireless shifting provides precise and reliable gear changes, while SRAM Maven Silver four-piston hydraulic brakes deliver exceptional stopping power when confidence matters most. DT Swiss Hybrid wheels, aggressive Maxxis tyres, and a frame-size-specific dropper post complete a specification designed for serious gravity riders.

An integrated Avinox DP100 OLED touchscreen display provides clear ride information, system controls, and customisation options directly from the top tube, creating a clean cockpit and intuitive user experience.

Whether you're hitting bike parks, tackling enduro stages, riding technical mountain terrain, or simply looking for the most capable electric mountain bike in the Whyte range, the Karve EVO RSX is engineered to deliver maximum thrills with minimum compromises.

Key Features

  • Uni-directional carbon fibre front triangle with aluminium rear swingarm
  • DJI Avinox M2S motor delivering up to 150Nm torque and 1300W peak power
  • High-capacity 800Wh integrated battery
  • Fast-charging system for reduced downtime
  • 180mm front and rear Whyte custom-tuned suspension travel
  • RockShox ZEB Ultimate fork

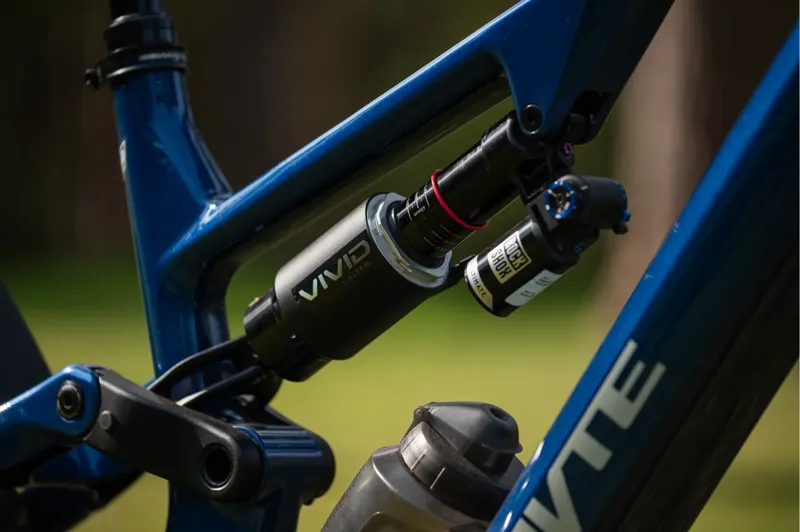

  • RockShox Vivid Ultimate rear shock
  • SRAM Eagle AXS wireless 12-speed drivetrain

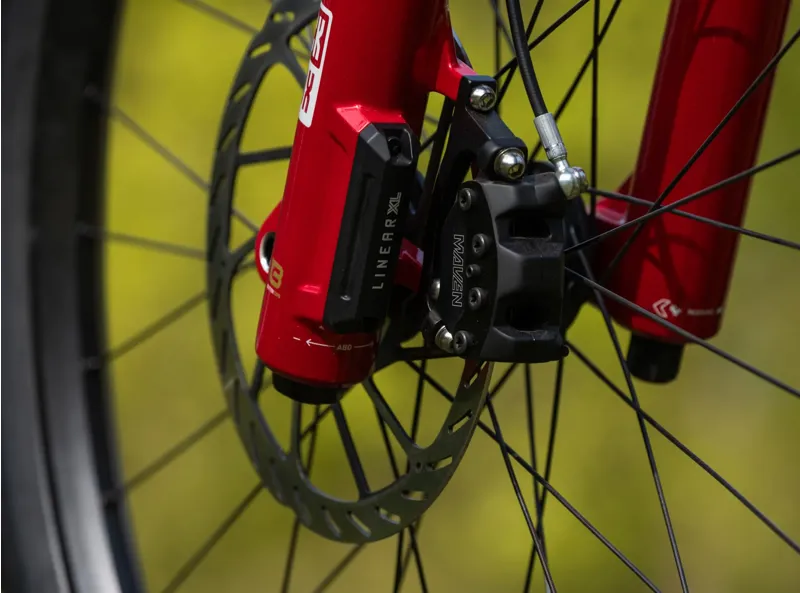

  • SRAM Maven Silver four-piston hydraulic disc brakes
  • DT Swiss Hybrid MX wheelset
  • Mixed-wheel setup with 29-inch front and 27.5-inch rear wheel
  • Full 29er compatible
  • Adjustable geometry for personalised handling
  • Avinox DP100 OLED touchscreen display
  • Factory-fitted frame protection
  • Designed for gravity riding, bike parks, self-shuttled laps and big mountain adventures

Why Choose the Whyte Karve EVO RSX?

The Whyte Karve EVO RSX is built for riders who demand the highest levels of descending capability, climbing assistance, and all-day performance. Combining advanced Avinox motor technology, long-travel suspension, premium components, and Whyte’s proven gravity-focused geometry, it delivers exceptional confidence and control on the steepest, roughest, and most challenging terrain.

Summary

The Whyte Karve EVO RSX is a flagship electric mountain bike designed for gravity-focused riders. Featuring a carbon and alloy frame, DJI Avinox M2S motor, 800Wh battery, 180mm suspension travel, SRAM Eagle AXS wireless drivetrain, and premium RockShox suspension, it delivers outstanding performance for bike parks, enduro racing, self-shuttled riding, and big mountain adventures.

Technical Information
FrameUni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 Alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts, RideWrap frame protection kit fitted as standard
ForkRockShox ZEB Ultimate, 180mm travel, 44mm offset, Linear XL, Charger 3.2 damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth
Rear shockRockShox Vivid Ultimate RC2T, 230 x 62.5mm, custom tuned for Whyte
HeadsetZS56 upper / lower headset cups for 1 1/8in upper and 1.5in lower with sealed bearings
Rear hubDT Swiss Hybrid HF1900, 12mm x 148mm Boost spacing, SRAM XD steel driver, six bolt
Front hubDT Swiss Hybrid HF1900, 110mm x 15mm Boost, six bolt
SpokesDT Swiss Elemental
RimsDT Swiss Hybrid HF1900, 29" front, 27.5" rear
TyresMaxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 27.5 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear)
Shift leversSRAM AXS Pod, right, MMX, 12 speed
Front mechN/A
Rear mechSRAM S1000 AXS Eagle, 12 speed
CassetteSRAM XS 1275, T-Type, 10-52T, 12 speed
ChainSRAM GX T-Type, 12 speed
CranksetWhyte 155mm long ISIS crank arms, SRAM direct mount, 36T chainring, T-Type
Bottom bracketN/A
SeatpostTranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop)
SeatWhyte Custom
BarWhyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide
StemWhyte, 35mm extension, 35mm bar bore
GripsWhyte Enduro lock-on
Front brakesSRAM Maven Silver hydraulic disc brake, four piston, sintered metal pads, 220mm six bolt HS2 rotors
Rear brakesSRAM Maven Silver hydraulic disc brake, four piston, sintered metal pads, 200mm six bolt HS2 rotors
Brakes leversSRAM Maven Silver
PedalsFibre reinforced composite platform
eBike motorAvinox M2S drive unit with 150Nm maximum torque, 1300W of peak power and 250W of nominal power. Features five power mode settings including Auto and Boost. AXS derailleur powered off motor and featuring SmoothShift.
eBike displayAvinox DPC100 OLED display mounted within the top tube, paired with the discrete bar mounted wireless controller. Also connects to the Avinox Ride smartphone app to give you even more insight and control at your fingertips.
eBike batteryAvinox 800Wh fixed battery, mounted into the frame by 2x bolts. Removeable for maintenance by removing motor.
eBike battery chargerCharger 12A (230V)
Shock, stroke, sag62.5mm/17.5mm
Reducer bush widths25mm
Eye to eye length230mm
WeightTBC
Sizing Information

Whyte Karve EVO Size Chart

The Whyte Karve EVO range uses Whyte's proportional sizing philosophy, with size-specific geometry and chainstay lengths designed to deliver consistent handling, stability, and weight distribution across all frame sizes.

Frame SizeRider Height (cm)Rider Height (ft/in)
Medium (M)169–179 cm5'7"–5'11"
Large (L)179–189 cm5'11"–6'3"
X-Large (XL)189–197 cm6'3"–6'6"

Quick Sizing Guide

  • 169–179cm (5'7"–5'11") → Medium
  • 179–189cm (5'11"–6'3") → Large
  • 189–197cm (6'3"–6'6") → X-Large

Karve EVO Geometry Highlights

  • Proportional sizing with size-specific geometry
  • Size-specific chainstay lengths for balanced handling
  • Adjustable geometry settings
  • MX wheel configuration (29-inch front / 27.5-inch rear)
  • Designed to maintain consistent grip, stability, and control across all frame sizes

Sizing Tips

  • Choose the smaller size if you prefer a more agile, playful feel and easier manoeuvrability.
  • Choose the larger size if you prioritise maximum stability and confidence on steep, high-speed descents.
  • Riders between sizes can choose based on riding style, with gravity-focused riders often preferring the larger option for added composure at speed.

Example Rider Sizing

Rider HeightRecommended Size
170cm (5'7")Medium
178cm (5'10")Medium or Large
182cm (6'0")Large
190cm (6'3")X-Large

The Karve EVO is specifically designed for aggressive trail, enduro, bike park, and big mountain riding, with geometry optimised to deliver confidence and control on the steepest and most demanding terrain.
